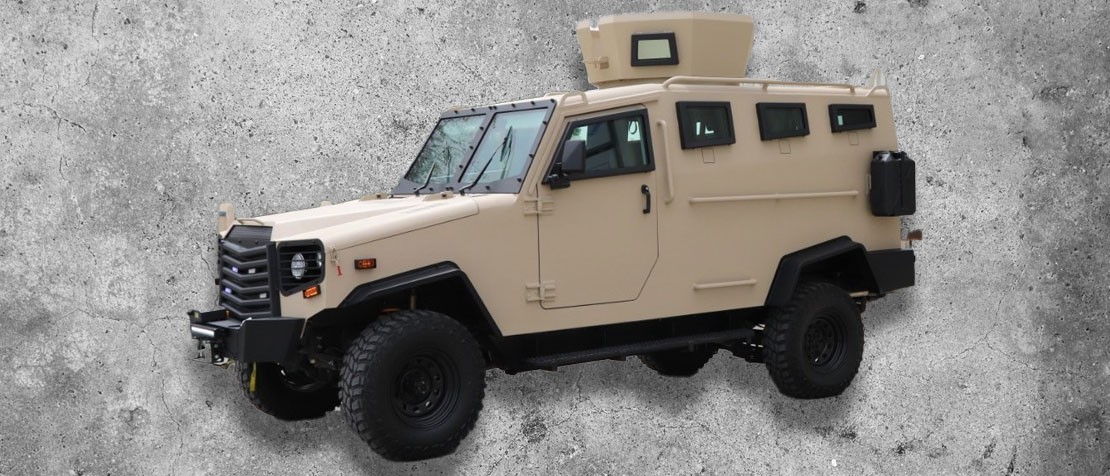

CM-009 Armored Vehicle

GENERAL:

• Model: LC79
• Country of Origin: Japan
• Armored Chassis Type: TOYOTA LC79 ( Wheeled Armored )
• Engine Make: Toyota
• Vehicle Country of Production & Assembly (including but not limited to armor protection, weapon system installation, navigation system installation, testing & commissioning): Türkiye
• Certificate of Origin: Türkiye

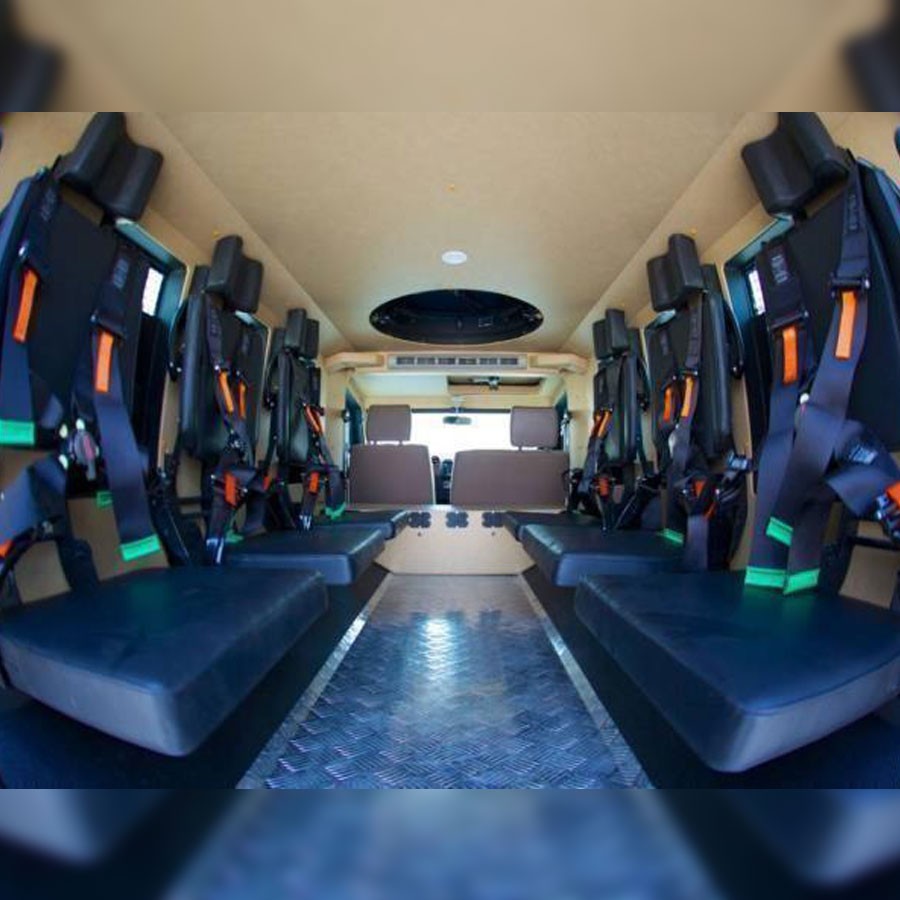

• Seating capacity : 9

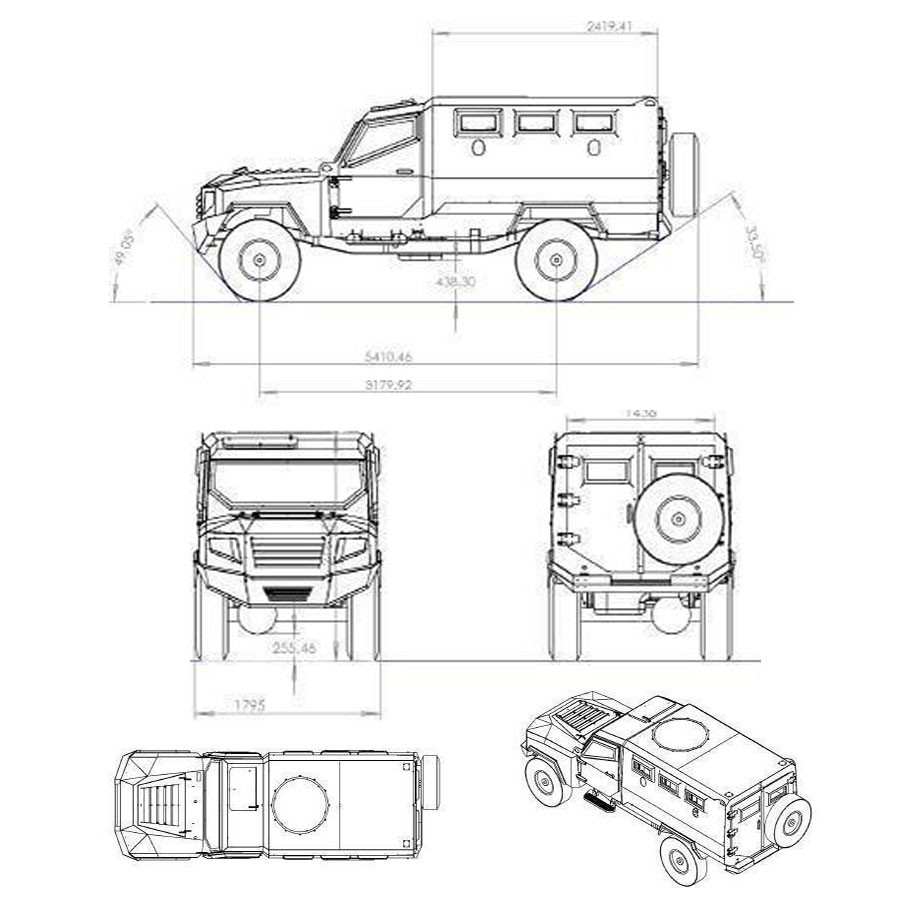

DIMENSIONS:

• Length: 5120 mm
• Width: 1795 mm
• Height: 2200 mm
• Wheelbase: 3180 mm
• Wheel Track (Front/Rear): 1420 / 1515
• Min Ground Clearance: 255
• Min.Turning Radius: 5.9

PERFORMANCE:

• Wheel Driver: 4x4
• Max Speed (on road) 120 kmph
• Gradeability: 60%
• Approach angle (degree) 49
• Departure angle (degree) 33
• No of Fuel Tank / Capacity: 2 / 90
• Cruising range (on road) (km): 800
• Fording depth (mm) 500

WEIGHTS (kg):

• GVW: 5300
• Curb Weight: 4305
• Pay load: 1000
• GVW for OEM Chassis (kg): 3200

ENGINE:

• Make: Toyota
• Model: 1GR-FE
• Fuel Type: Petrol
• Displacement (CC): 3965
• Number of Cylinders: 6V
• Max Power (hp@rpm): 228/5200
• Max Torque: (N.m @ rpm): 360@3800
• Fuel system: EFi

GEARBOX:

• Make: Toyota
• Model: H150F
• Type: Manual
• No of Shifts: 1/5

ELECTRICAL EQUIPMENT:

• Battery; Qty / Capacity (Ah): 1/72A
• Battery Dimensions (LxWxH) (mm): 517 x 189 x 240

TYRES

• (Present): Size: 285 / 75R16
• Load Index: 114
• Speed Symbol: S
• Tread Pattern: On / Off Road

CAPACITIES (lt):

• Engine Oil: 5.7
• Gearbox Oil: 2.7
• Differential Oil: 2.5
• Coolant: 10.9

ARMOR PROTECTION:

• Ballistic level protection: BR6 (STANAG 4569 Protection Level 1)
• Runflat: Composite
• V-hull: No.
